Description
Canon IJM642 Monomeric Vinyl, Matte, Removable: B1 Rated, 100 Micron
Canon IJM642 is a white, monomeric, calendared, self-adhesive vinyl with a removable adhesive and a siliconized kraft paper release liner. It suits short to medium term indoor and outdoor advertising and promotion, point of sale applications and window decoration, and works with (eco) solvent, UVgel/UV and latex printing.
Key features and benefits
- Matte finish, removable adhesive: Matte monomeric vinyl with a removable adhesive, described by Canon as semi-permanent, water-based and clear.
- Removable adhesive: Removable acrylic adhesive, with 9 N/25mm on steel after 24 hours.
- Short to medium term use: Suited to short to medium term indoor and outdoor advertising and promotion.
- Excellent on flat surfaces: Excellent application on flat surfaces.
- Works across ink types: Suits (eco) solvent, UVgel/UV and latex printing.
- B1 flame retardant (DIN 4102): Meets B1 flame retardancy.
- Self-extinguishing: Self-extinguishing when adhered to stainless steel.
- Kraft paper release liner: Backed with a siliconized kraft paper liner.
- Can be used outdoors without lamination: Cold lamination is recommended if the print is subject to mechanical abrasion.
- Three roll widths: Available in 1050mm, 1370mm and 1600mm on a 3″ core.
Specifications
- Material: Monomeric calendared vinyl, white, matte
- Adhesive: Removable acrylic; semi-permanent, water-based, clear
- Liner: Siliconized kraft paper
- Film thickness: 100 Micron (ISO 534)
- Liner weight: 135 g/m² (ISO 536)
- Flame retardance: B1 (DIN 4102)
- Dimensional stability: <0.5 mm (FINAT 14)
- Elongation at break: >160% (ISO 527-1)
- Tensile strength: >24 N/mm² (ISO 527-1)
- Adhesion on steel after 24 hours: 9 N/25mm (FINAT TM 1)
- Widths: 1050mm, 1370mm, 1600mm
- Core: 3″
- Print technologies: (Eco) solvent, UVgel/UV and latex
- Application temperature range: -20°C to +70°C
- Minimum application temperature: 10°C
- Shelf life: 2 years at 23°C and 50% RH, in original boxes
Best used for
- Short to medium term indoor and outdoor advertising and promotion
- Point of sale applications

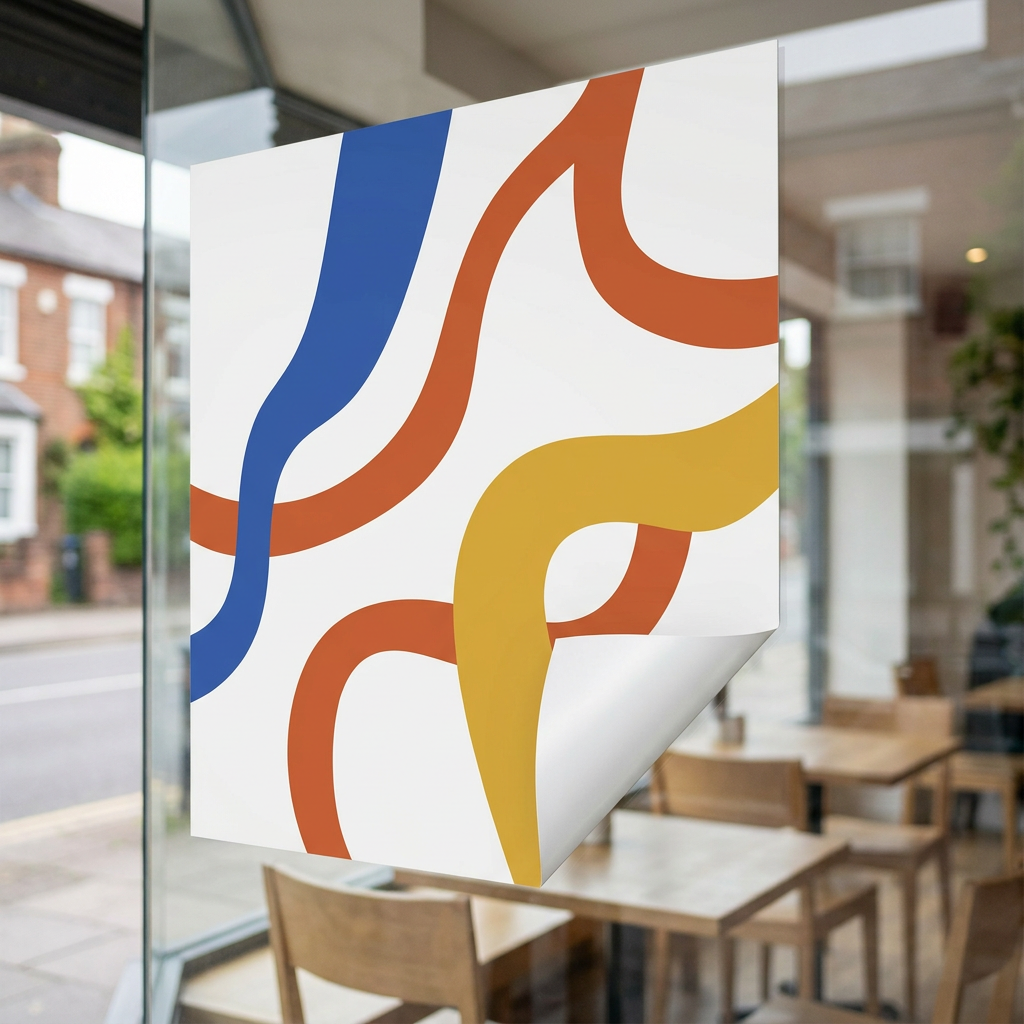

- Window decoration
Things to know
- Short to medium term outdoor use. IJM642 is suited to short to medium term outdoor use, based on a Central Europe climate. Actual outdoor life depends on substrate preparation and exposure conditions, and air pollution can affect outdoor performance.
- Flat surfaces. This is a monomeric film with excellent application on flat surfaces. It can be applied to a large number of flat and smooth surfaces.
- Cold lamination only. Use pressure-sensitive laminates only, and do not use warm or hot lamination. IJM642 can be used outdoors without lamination, but lamination is recommended if the print is subject to mechanical abrasion. Cold lamination protects against UV exposure and improves contrast and colour brilliance, and laminating can prolong outdoor performance.
- Printing conditions. For best results, print at 15–25°C and 35–65% RH, and refer to your printer specifications. Handle with cotton gloves and keep the film clear of grease, oil, silicone and dirt. Calibrate the printer and make a test print. Canon media profiles include recommended settings. An external drying unit is recommended for high-speed production.
- Application. Apply to smooth, flat, dirt- and grease-free surfaces, and do not use on freshly lacquered surfaces. Pretest on unknown surfaces. The minimum application temperature is 10°C, and the application temperature range is -20°C to +70°C.
- Storage. Shelf life is 2 years at 23°C and 50% RH, in the original boxes. Repack opened rolls when not in use.
- Removal. Remove at 15–25°C. Heating the surface of the film with a hot air gun eases removal. Glue residue can be removed with soapy water or petrol.
- No MSDS required. No Material Safety Data Sheet is required for this film.
