Description
Canon IJM644 Monomeric Vinyl, Gloss, Permanent Grey Glue: B1 Rated, 100 Micron
Canon IJM644 is a gloss, white, monomeric, calendared, self-adhesive vinyl with a permanent grey acrylic adhesive and a kraft paper release liner. It is suitable for application on flat and slightly curved surfaces, suits short to medium term indoor and outdoor advertising and point of purchase applications, and works with (eco) solvent, UVgel/UV and latex printing.
Key features and benefits
- Permanent grey adhesive: Permanent grey acrylic adhesive, with grey glue for opacity.
- Gloss white finish: Gloss, white, monomeric, calendared vinyl.
- Flat and slightly curved surfaces: Suitable for application on flat and slightly curved surfaces.
- No adhesive residue after removal: No adhesive residue after removal, if correctly applied.
- Short to medium term use: Suited to short to medium term indoor and outdoor advertising.
- Works across ink types: Suits (eco) solvent, UVgel/UV and latex printing.
- B1 fire retardancy (DIN 4102): B1 certified.
- REACH compliant: Meets REACH requirements.
- Kraft paper release liner: Backed with a kraft paper liner.
- Laminate for added protection: Lamination improves UV resistance and protects against abrasion.
- Three roll widths: Available in 1370mm,1550mm and 1600mm on a 3″ core.
Specifications
- Material: Monomeric calendared vinyl, white, gloss
- Adhesive: Permanent, acrylic, grey
- Liner: Kraft paper
- Film thickness: 100 Micron (ISO 534)
- Liner weight: 135 g/m² (ISO 536)
- Fire retardancy: B1 (DIN 4102)
- Adhesive strength: 5.5 N/cm (FINAT TM 1)
- Tensile strength (MD): >8.8 kN/m (ISO 527-1)
- Widths: 1370mm, 1550mm and 1600mm
- Core: 3″
- Print technologies: (Eco) solvent, UVgel/UV and latex
- Temperature resistance (durability temperature): -40°C to +70°C
- Minimum application temperature: 10°C
- Shelf life: 2 years at 23°C and 50% RH, in original boxes
Best used for
- Short to medium term indoor and outdoor advertising
- Point of purchase applications
- Flat and slightly curved surfaces
Things to know
- Short to medium term outdoor use. IJM644 is suited to short to medium term outdoor use, based on a Central Europe climate. Actual outdoor life depends on substrate preparation and exposure conditions, and air pollution can affect outdoor performance.

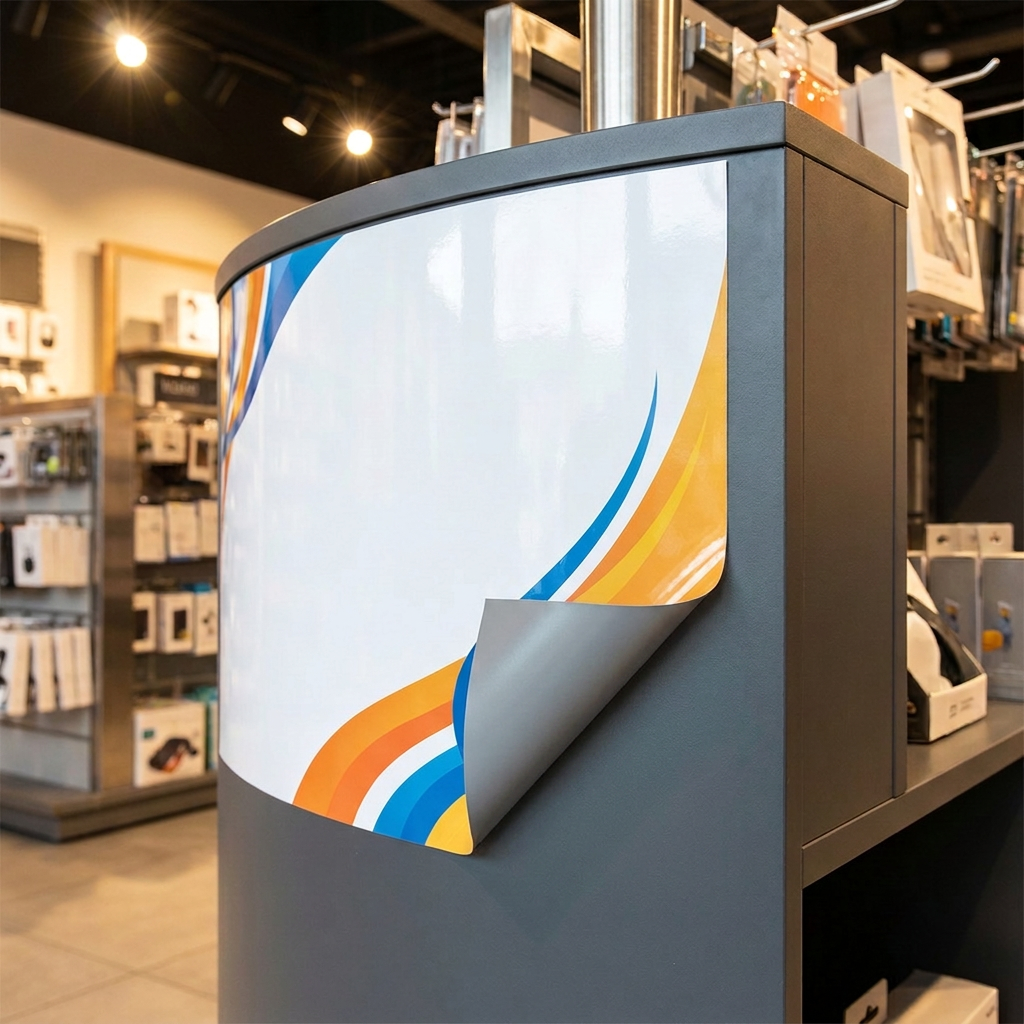

- Flat and slightly curved surfaces. This is a monomeric film with easy application on flat surfaces, and it is suitable for application on flat and slightly curved surfaces. It can be applied to a large number of flat and smooth surfaces.
- Cold lamination only. Use pressure-sensitive laminates only, and do not use warm or hot lamination. Let prints dry for at least 24 hours before laminating. Only pressure-sensitive laminates are recommended for outdoor use. Lamination improves UV resistance, protects against abrasion, and can prolong outdoor performance.
- Printing conditions. For best results, print at 15–25°C and 35–65% RH, and refer to your printer specifications. Handle with cotton gloves and keep the film clear of grease, oil, silicone and dirt. Calibrate the printer and make a test print. Canon media profiles include recommended settings. An external drying unit is recommended for high-speed production.
- Application. Apply to smooth, flat, dirt- and grease-free surfaces, and do not use on freshly lacquered surfaces. Pretest on unknown surfaces. The minimum application temperature is 10°C.
- Storage. Shelf life is 2 years at 23°C and 50% RH, in the original boxes. Repack opened rolls when not in use.
- Removal. Remove at 15–25°C. Heating the surface of the film with a hot air gun eases removal. Glue residue can be removed with soapy water or petrol.
- Disposal. No Material Safety Data Sheet is required. After use, dispose of the waste product in accordance with the local or national authorities.
For more information
For more information check out the Canon IJM644 Data Sheet.
